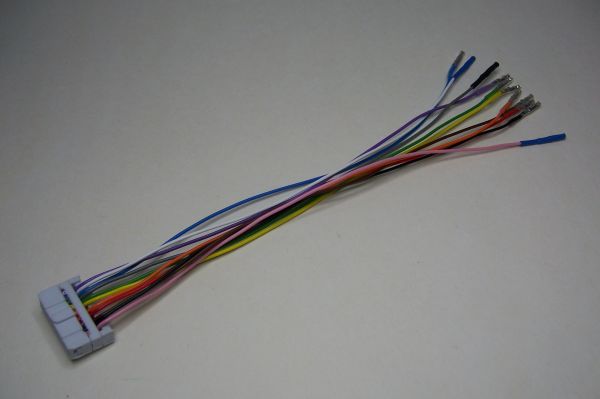

8-Bit Digital Cable
Test cable set for 8-bit logic signals (one channel), the clock line, trigger input and Ground connection. All single cables have a length of 20cm.
All single data lines terminate in a female connector that allow connection of a AWG 20-24 micro grabber.
Color coding of cables:
- Data Bit 0: black
- Data Bit 1: brown
- Data Bit 2: red
- Data Bit 3: orange
- Data Bit 4: yellow
- Data Bit 5: green
- Data Bit 6: blue
- Data Bit 7: violet
- Clock Line: white with blue tip
- Trigger Input: pink with blue tip
- GND: gray with black tip

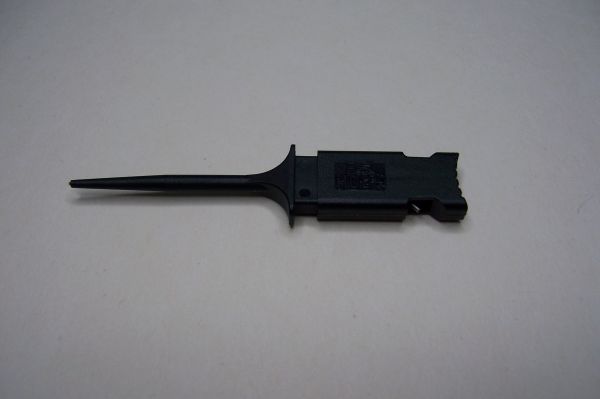

Micrograbber
Micrograbber with AWG 22 connection pins

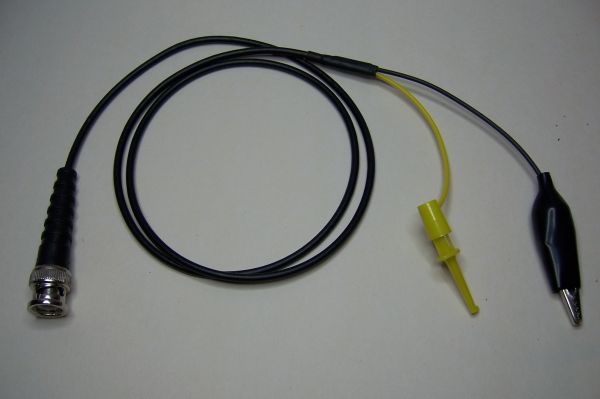

Long Analog Cable
Test cable for the analog port of WaverAD. BNC connection with a 50Ω flexible coax cable (80 cm) terminating in a 10cm ground line and a 10cm signal line, each with connected grabber..

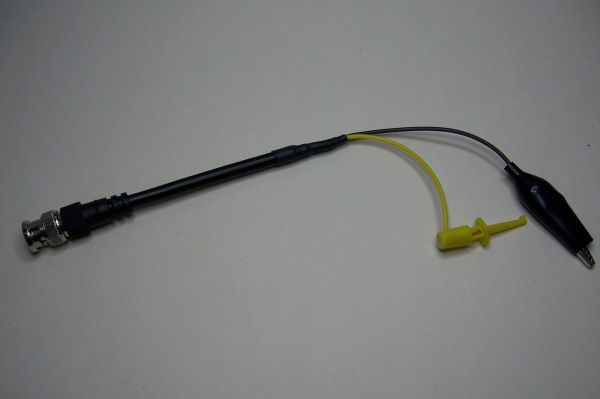

Short Analog Cable
Test cable for the analog port of WaverAD. 10cm stiff BNC connection directly terminating in a 10cm ground line and 10cm signal line, each with connected grabber.
